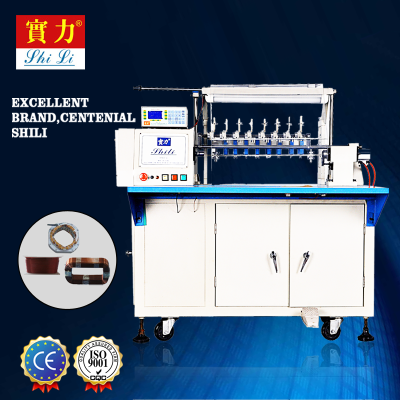

SRA22-8 Eight spindle motor coil winding machine

SRA22-8 Eight spindle motor coil winding machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: Xiao lan port
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1994-02-21
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  CHINA
  • Brand Name:  SHILI
  • Model Number:  SRA22-8
  • Weight: 200.000 kg

Machine Feature:

This machine design of 32 bit controller chip, It’ll be faster, and higher reliability.In Chinese and English display,easy to operation,winding data retention after power failure, not to discarded productsAll the parts for this machine are imported prats,such as:Japan Bearing (NSKNTN),Japan BANDO belt Japan GATES belt Taiwan Ball screw (TBI)Taiwan Transducers and so on.

Change the fixture has two choice, with pneumatic or manual. The machine can be used for multi connected, coil automatic wire winding of multilayer type , it can winding  1-8 wire at one time.can also be pass the groove automatically . Can winding 1-32 coils in the winder length range. There are two alternate use of the square shaft rotatable about the coil diameter 25MM-180MM, high production efficiency.

For the characteristics of the machine winding ,the machine body use thick cast iron , The vibration and noise of smaller machines, it also have when wire cutting the machine will stop function, not discarded products.



Main configuration:

Row of thread with eight winding head, the winding head length and elevation can be easily adjusted.

Equipped with mobile wire frame (including eight  group bobbin and eight spools ,size is  120mm × 300mm diameter ).

With two mold spindle :dimensions 16 × 16 × 630mm

Supply frame  size is 800 × 800 × 780mm.

Install brake resistors, the position more accurately



Application range

Can winding a variety of motor coil groups, including industrial motors, air conditioner motors, washing machine motors, fan motors.



Specifications

Spindle number

8

Wire size range

0.1-0.6mm

Loop diameter

260mm

Max wire distance

9.99mm

Winder width

180mm

Max speed

0-3500 turn/min

Spindle motor

Phase motor AC Drive

Winder motor

Stepping motor

Input power

220V  50HZ/60HZ

Machine size

1320×900×1320mm

Package size

1370×1420×1300mm

N/G weight

200kg/240kg




  • Place of Origin:  CHINA
  • Brand Name:  SHILI
  • Model Number:  SRA22-8
  • Weight: 200.000 kg
