- Place of Origin: China
- Brand Name: SHILI
- Model Number: SRF22-2
- Weight: 180.000 kg

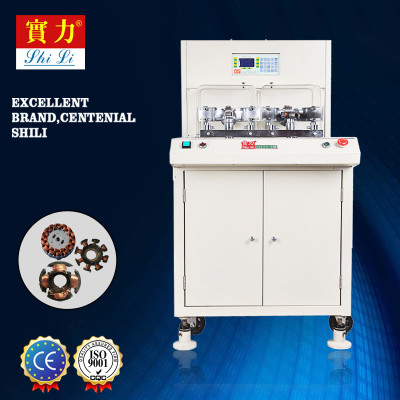

Machine Feature:
This machine design of 32 bit controller chip, It’ll be faster and higher reliability.In Chinese and English display,easy to operation,winding data retention after power failure, not to discarded products。All the parts for this machine are imported prats,such as:Japan Bearing (NSK、NTN),Japan BANDO belt ,Japan GATES belt ,Taiwan Ball screw (TBI),Taiwan Transducers and so on.
The machine use two spindle synchronous design, selection of high-power phase motor, making a thick wire around the low-speed torque when larger and more stable. Coupled with high-power stepper motor ,when it rotates will get higher accuracy, so that customers to feel save time,save worker,high production.
Application range:
This machine suitable for all kinds of motor stator winding, a variety of ceiling fan stator, pole number stator, locomotives generators.
- Place of Origin: China
- Brand Name: SHILI
- Model Number: SRF22-2
- Weight: 180.000 kg
Spindle number | 2 |
Wire size range | 0.1-1.2mm |
Loop diameter | 200mm |
The max wire spacing | 9.99mm |
Winder width | 100mm |
Max speed | 2200 turn/min |
Spindle motor | Phase motor AC Driver |
Winder motor | Stepping motor |
Input power | 220V 50HZ/60HZ |
Machine size | 720×950×1300mm |
Package size | 860×1400×1320mm |
Net weight | 180kg |
Gross weight | 220kg |
